Extreme Networks WiNG AP 7522 Access Point
Extreme Networks WiNG AP 7522 Access Point
Out of stock
For a custom quote please email sales@ziestech.com

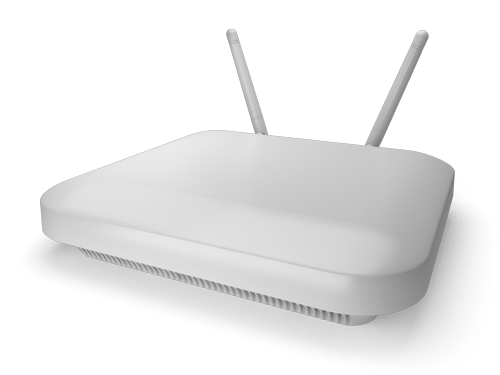

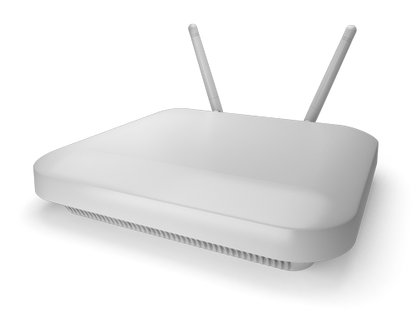

Extreme Networks WiNG AP 7522 Access Point (AP-7522-67030-1-WR)
High-performance Enterprise-class AP
The WiNG AP 7522 is a multi-role, high performance and cost-effective 802.11ac/802.11n that serves multiple market segments with next-generation wireless LAN. Ideally suited for small retail stores, quick serve, and transportation and logistics.
The Bandwidth and Application Performance You Need
802.11ac technology builds on the advances of 802.11n — the 802.11ac radio delivers more bandwidth and faster speeds through new technology enhancements such as Multiple-Input Multiple-Output (MIMO).
More Robust Wireless Connections
Your users will experience a more robust wireless connection than ever before, thanks to improved beamforming. Beamforming creates the most efficient path for data transmission between an access point and a mobile device. The result is a stronger connection that enables faster data transmission.
Product Specifications
| General | |
|---|---|
| Device Type | Wireless access point |
| Width | 6.5 in |
| Depth | 7.1 in |
| Height | 1.6 in |
| Weight | 28.92 oz |
| Localization | Worldwide |
| Networking | |
|---|---|
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.267 Gbps |
| Line Coding Format | 256 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | OFDM, DSSS |
| Network / Transport Protocol | PPPoE, BOOTP, DHCP, DDNS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Link/activity |
| Features | Routing, auto-sensing per device, NAT support, power over Ethernet (PoE), VPN support, BOOTP support, load balancing, dynamic DNS server, DiffServ support, IP address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, roaming function, DHCP server, 2T2R MIMO technology, LLDP support, Stateful Packet Inspection Firewall (SPIF), Low Density Parity Check (LDPC), DHCP client, Space Time Blocking Code (STBC), ceiling mountable, 8KV/15KV ESD Protector, Type of Service (ToS) |
| Encryption Algorithm | WPA, WPA2 |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 801.1p, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac |
| Antenna | |
|---|---|
| Antenna | Internal |
| Antenna Qty | 2 |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 | 1 x console - RJ-45 |
| Miscellaneous | |
|---|---|
| Compliant Standards | UL 2043, FCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, TELEC, cUL No.60950-1 |
| Power | |
|---|---|
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
|---|---|
| OS Provided | WiNG 5 |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
