Fanvil X5U-R Special Red IP Phone
Fanvil X5U-R Special Red IP Phone
For a custom quote please email sales@ziestech.com

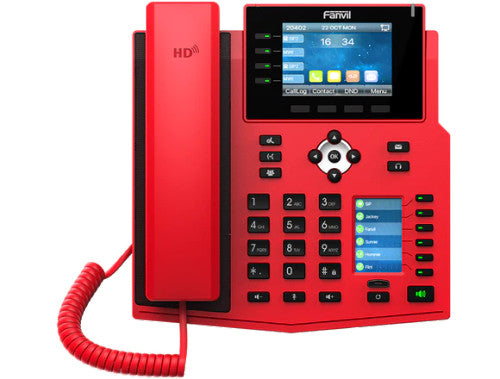

The Fanvil X5U-R is a special red, enterprise two-screen IP phone designed to be easy to recognize at a distance. It has a 3.5-inch (480 × 320) main color screen, a 2.4-inch (240 × 320) side color screen for DSS keys, 16 SIP lines, HD voice, 3-way audio conferencing, dual Gigabit Ethernet with integrated PoE, and built-in Bluetooth 2.1. Wi-Fi is available with a Wi-Fi dongle, and an EHS wireless headset is supported.
Features
- Special red housing; 3.5-inch (480 × 320) main color screen and 2.4-inch (240 × 320) side color screen for DSS keys
- 16 SIP lines; 3-way audio conference; SIP hotspot
- 4 line keys on the main display; up to 30 DSS keys (6 two-color physical keys)
- HD voice on the handset and speakerphone; codecs include G.722, AMR-WB, and Opus; HAC handset
- Dual 10/100/1000 Mbps Ethernet ports with integrated PoE
- Built-in Bluetooth 2.1 for a Bluetooth headset
- USB 2.0 Type-A port for a Wi-Fi USB dongle or flash drive
- Compatible with an EHS headset, including Jabra headsets via a Fanvil EHS20 cable and Poly headsets via a Poly APD-80 cable
- Desktop stand with 45° and 50° angles; wall mounting requires additional wall-hanging parts
- Power: PoE or an optional DC 5 V/2 A adapter. The official package does not include a power adapter.
Package and physical
- Package contents: HD handset (RJ9), standard RJ9 handset cord, 1.5 m CAT5 Ethernet cable, and back rack (desktop stand)
- Color: red
- Device dimensions with the desktop stand, angle 1: 214 × 188.6 × 181.1 mm; angle 2: 214 × 180.5 × 190.1 mm; wall-mounted: 214 × 119.4 × 219.1 mm
- Power consumption: 1.38–9.13 W (adapter) or 1.7–10.46 W (PoE)
- Working temperature: 0–45 °C; working humidity: 10–95%
