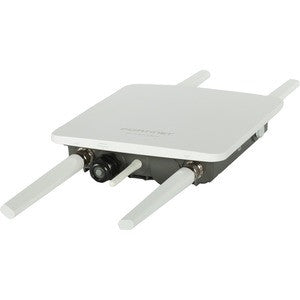

Fortinet FortiAP 222E Wireless Access Point

Fortinet FortiAP 222E Wireless Access Point

Out of stock

For a custom quote please email sales@ziestech.com

Fortinet FortiAP 222E Wireless Access Point (FAP-222E-A)

Fortinet FortiAP 222E IEEE 802.11ac Wireless Access Point - 5 GHz, 2.40 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Wall Mountable, Pole-mountable

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance or can be managed through the FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

KEY SELLING POINTS

  • Unified management
  • Built-in Wi-Fi security
  • Advanced security protection

MAIN SPECIFICATIONS

Product Description Fortinet FortiAP 222E - wireless access point
Device Type Wireless access point
Form Factor External - outdoor, indoor
Localization Americas
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum throughput (2.4 GHz): 400 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps
Capacity Maximum number of configured SSIDs: 16 ¦ Concurrent users per radio: 512
Included Accessories Pole mount, wall mounting kit
Power Over Ethernet (PoE) Supported PoE+
Dimensions (WxDxH) 8.7 in x 9.8 in x 2.1 in
Weight 3.82 lbs
Manufacturer Warranty 1-year warranty

EXTENDED SPECIFICATIONS

General
Device Type Wireless access point
Ruggedized Design Outdoor, indoor
Width 8.7 in
Depth 9.8 in
Height 2.1 in
Weight 3.82 lbs
Localization Americas
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 867 Mbps
Line Coding Format 256 QAM
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum throughput (2.4 GHz): 400 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps
Capacity Maximum number of configured SSIDs: 16 ¦ Concurrent users per radio: 512
Features Firewall protection, MAC address filtering, Intrusion Prevention System (IPS), tunneling, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, application filtering, rugged, Maximum Likelihood Demodulation (MLD), Captive Portal, 802.1x authentication, cloud managed, packet aggregation A-MPDU, packet aggregation A-MSDU, Web Filtering, 2x2 MU-MIMO technology, LED off mode, spectrum analyzer, FortiPresence support, Packet Sniffer Mode, Wireless Mesh support, MIMO Power Save, Short Guard Interval, WME Multimedia Extensions
Encryption Algorithm TLS, PEAP, TTLS, WPA, WPA2, WPA-PSK, WPA2-PSK, WEP
Authentication Method MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2
Antenna
Antenna External
Antenna Qty 4
Gain Level 7 dBi
Expansion / Connectivity
Interfaces 1 x 1000Base-T (PoE+) - RJ-45 - 30 W ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x network - SFP (mini-GBIC) ¦ 1 x management (RS-232)
Miscellaneous
Included Accessories Pole mount, wall mounting kit
Cables Included 1 x ground cable - 19.7 ft
MTBF >10 years
Compliant Standards ETSI, ICES-003, EN55024, FCC Part 15 B, RSS-102, FCC Part 15 C, FCC, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 E, CSA C22.2 No. 60950-1, IP67, LVD, Directive 2004/108/EC, EN 300 328, EN 301 489, RSS-247, EN 301 893, EN 55032, Directive 2014/53/EU
Power
Power Over Ethernet (PoE) Supported PoE+
Power Consumption Operational 13.5 Watt
Dimensions & Weight (Shipping)
Shipping Weight 5.82 lbs
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature -4 °F
Max Operating Temperature 149 °F
Humidity Range Operating 5 - 90% (non-condensing)
