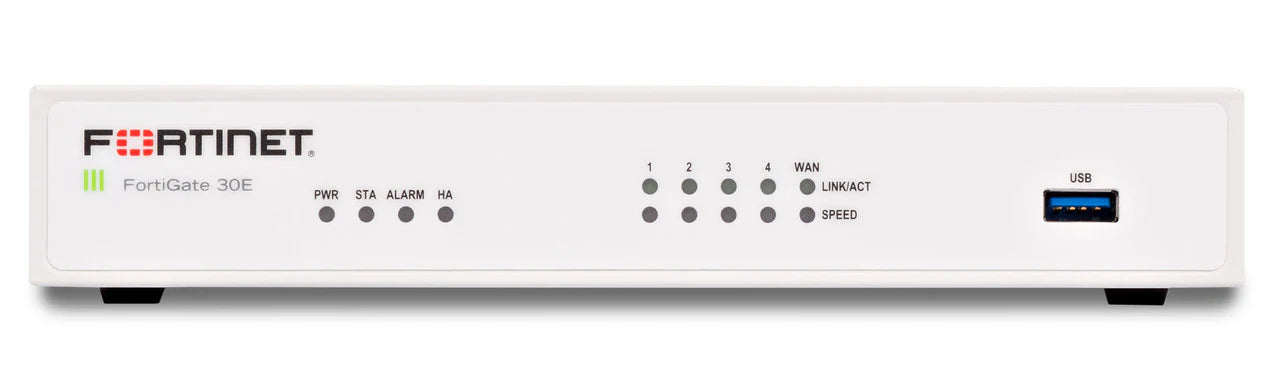

Fortinet FortiGate 30E Security Appliance (FG-30E)

The FortiGate/FortiWiFi 30E series provides an application-centric, scalable and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

5 x GE RJ45 ports (Including 1 x WAN port, 4 x Switch ports)

TECH SPECS

Header

• Manufacturer :Fortinet
• Brand :Fortinet
• Product Line :Fortinet FortiGate
• Model :30E
• Packaged Quantity :1

Flash Memory

• Installed Size :16 GB, 16 GB

Performance

• Performance :Firewall throughput: 950 Mbps, IPS throughput (HTTP): 600 Mbps, IPS throughput: 240 Mbps, Firewall latency (64-byte UDP): 130 µs, VPN throughput (512-bit IPSec): 75 Mbps, SSL inspection throughput: 200 Mbps, VPN throughput (SSL): 35 Mbps, Firewall throughput: 180000 packets per second

Capacity

• Capacity :New TCP sessions per second: 15000, Client to gateway IPSec VPN tunnels: 250, Number of FortiClient devices: 200, Number of FortiAP devices: 2, Virtual domains: 5, Gateway to gateway IPSec VPN Tunnels: 20, Firewall policies: 5000, Concurrent SSL VPN users: 80, Number of FortiToken devices: 20, Concurrent TCP sessions: 900000

Networking

• Type :Security appliance
• Form Factor :External
• Connectivity Technology :Wired
• Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
• Switching Protocol :Ethernet
• Remote Management Protocol :HTTP
• Features :Antivirus analysis, ASIC VPN, Firewall protection, VPN support, URL filtering, Manageable, Intrusion Prevention System (IPS)

Interface Provided

• Interfaces :1 x console - RJ-45, 4 x 1000Base-T - RJ-45, 1 x 1000Base-T - RJ-45 (WAN), 1 x USB - Type A

Software

• Type :FortiExplorer

Power Device

• Type :External power adapter
• Nominal Voltage :AC 120/230 V
• Frequency Required :50 - 60 hertz
• Power Consumption Operational :13 watt

Miscellaneous

• Compliant Standards :CB, ICSA Antivirus, C-Tick, FCC Part 15 B, cUL, ICSA Firewall certified, VCCI, UL, ICSA Intrusion Detection, ICSA IPSec certified

Dimensions & Weight

• Width :21 centimetre
• Depth :13.3 centimetre
• Height :4.1 centimetre
• Weight :899 gram

Environmental Parameters

• Min Operating Temperature :0 degree Celsius
• Max Operating Temperature :40 degree Celsius
• Humidity Range Operating :20 - 90% (non-condensing)
