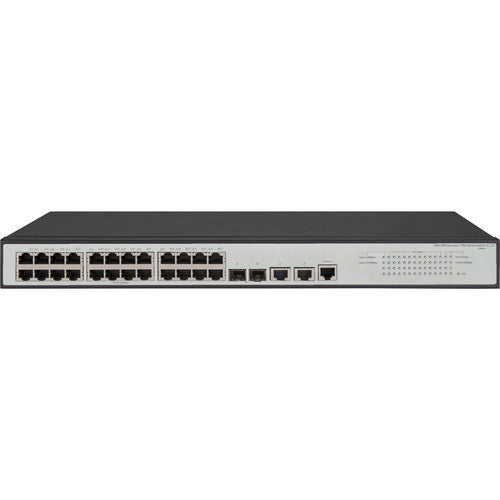

HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch
HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch
Out of stock
For a custom quote please email sales@ziestech.com
HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Switch (JG962A#ABA)
The HPE 1950 Switch Series is a family of smart web-managed Gigabit switches with 10GbE uplinks for small business customers needing advanced high-performance connections. The series has 2 standard and 2 PoE+ models, 24- and 48-GbE ports, each with 2 10GBASE-T and 2 10G SFP+ high-bandwidth ports. True stacking of as many as 4 devices allows them to be logically administered as a single entity. The switches support Layer 3 static routing on IPv4 and IPv6. Other advanced features include ACLs, 802.1X, STP, RSTP, and MSTP. Limited lifetime warranty covers unit, fans and power supplies.
Key Features
- Each model of the HPE 1950 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
- Logically group or "stack" as many as four units of the HPE 1950 Switch Series and manage this as a single entity, greatly simplifying network administration. Interconnect stacked units using 10GbE connections, with as much as 40GbE total stacking bandwidth connecting the units.
- The HPE 1950 Switch Series lets you use Virtual LANs and access control lists to set bounds on what data can be seen by which users.
- The HPE 1950 Switch Series supports Spanning Tree Protocol, Rapid Spanning Tree Protocol, and Multiple Spanning Tree Protocol standards for creating hot-standby recovery links.
General
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 10Gb Ethernet |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Throughput (64-byte packet size): up to 95.2 Mpps Routing/switching capacity: 128 Gbps |
| Capacity | Static routes: 32 Virtual interfaces (VLANs): 8 IPv4 routing table entries: 32 IPv6 routing table entries: 32 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMP, VRRP, static IPv4 routing, static IPv6 routing, ECMP |
| Remote Management Protocol | SNMP 1, RMON 2, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Features | Auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, Link Aggregation Control Protocol (LACP), DHCP client, packet storm protection, Class of Service (CoS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| RAM | 1 GB (max) SDRAM |
| Flash Memory | 128 MB |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ 2 x Gigabit / 10Gbit LAN SFP+ 2 x 10GBase-T RJ-45 1 x console RJ-45 management |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous
| MTBF | 44.4 years |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, VCCI Class A, EN 61000-3-2:2000, GB 4943.1 |
| Localization | English / United States |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 14.2 in |
| Height | 1.7 in |
| Weight | 13.23 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
