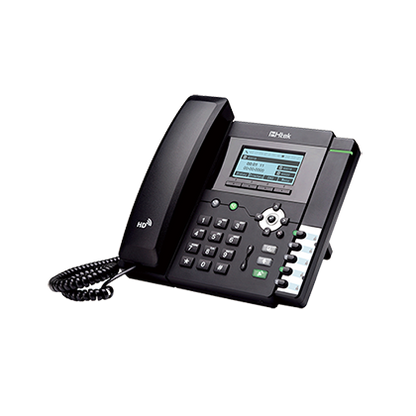

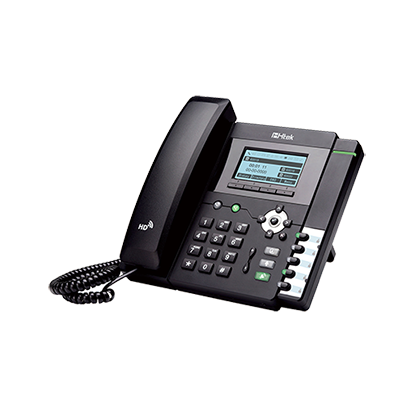

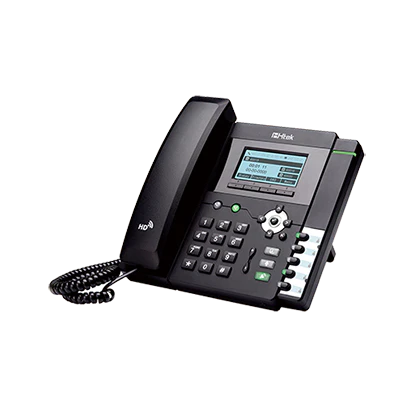

Htek UC803T Business IP Phone (UC803T)

UC803T delivers superior HD audio quality, rich and leading edge telephony features, all the functions of software are the same as other models. It is a perfect choice for small to medium businesses looking for a high quality, feature rich IP Phone with affortable cost.

Features

2 SIP Accounts
Menu-driven user interface, XML Idle Screen, Theme,
Integrated Screenshots
Screen Sleep
Call hold, Call waiting, Call forward, Call return,
Redial,Call transfer
Caller ID display, DND, Auto-answer, 5-Way Conference
Mute, Speed dial, SMS, Voicemail, Message Waiting
Indication (MWI) LED, Call history
BLF/BLA
Tone scheme, Volume control
Ring tone selection/Import/Delete
Broad and Deep Interoperability
Soft keys programmable
Phonebook, Black list XML/LDAP phonebook(1000 enties)
XML phonebook search/import
LDAP phonebook
Basic Hot-desking
XML Browser, XML Idle Screen
Action URL & Active URI
Wallpaper, Screensaver
Based IP PBX system:
Busy lamp field (BLF), BLF list, (BLA)
DND & Forward synchronization
Intercom, Paging
Call park, Call pickup
Call recording, Call completion
Group listening, Group pickup
Anonymous call, Anonymous call rejection
Network conference
Distinctive ringtone
Dial Plan, Dial-now
TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP
Static/DHCP/PPPoE
TFTP/DHCP/PPPoE client
HTTP/HTTPS server
IPv6, Bridge/router mode for PC port
SIP v1 (RFC2543), v2 (RFC3261),
SDP(RFC 2327), RTP(RFC 1889,1890),
RTCP, RTCP-XR, RFC 2833 X-NSE Tone
Events for SIP/RTP, AVT Tone Events for SIP/RTP
DNS SRV (RFC3263)，Redundant server support

192*64 graphic LCD with backlit
Ethernet: 2 RJ45 (1 Internet+1 PC)
2 line keys, 3 feature keys, 4 softkeys,
6 navigation keys , 5 memory keys
Handset: 1 RJ9(4P4C)
Headset: 1 RJ9(4P4C)
Power adapter: 5V/1.2A
Power over Ethernet(PoE): IEEE 802.3af
Power consumption approx: 1.7-2.2W

Auto-provision via FTP/TFTP/HTTP/HTTPS
Auto-provision with PnP
SNMP V1/2 optional, TR069 optional
Configuration: browser/phone/auto-provision
Factory configuration customized
Trace package and system log export

HD wideband codec:
G.722. HD Codec, HD speaker, HD handset
Full-duplex speakerphone with AEC
G.711u/a-law, iLBC, G.723.1, G.726, G.729A/B.
DTMF(In-Band, RFC2833, SIP Info)
VAD, CNG, AEC, PLC, AJB, AGC

Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP
Transport Layer Security (TLS)
HTTPS (server/client), SRTP (RFC3711),ZRTP(RFC6189)
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Phone lock for personal privacy protection
Admin/VAR/User 3-level configuration mode

Operating humidity: 10~95%
Operating temperature: -10~50°C
Qty/CTN: 10 PCS
N.W/CTN: 11.5 KG
G.W/CTN: 12.5 KG
Carton Meas: 530MMx500MMx225MM
