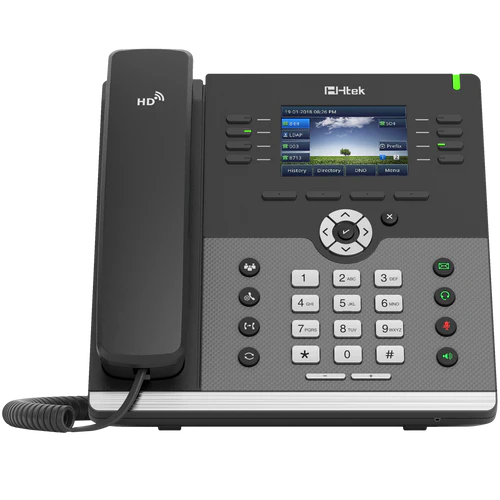

Htek UC924E Wifi/Bluetooth IP Phone (UC924E)

UC924 is an innovative Gigabit Color IP Phone, 3.5” TFT-LCD with 480*320 pixel. It supports up to 5-way conference. UC924 is optimized for executive use for major decision makers, administrative assistants and those working with bandwidth-intensive application on collocated PCs. The high-resolution TFT-LCD and HD Voice bring you the lifelike visual and audio experience.

Phone Features

Up to 12 SIP accounts

Call hold, mute, DND

One-touch speed dial, hotline

Call forward, call waiting, call transfer

Redial, call return, auto answer, direct IP call

5-way conferencing

XML Browser, action URL/URI

Group listening, SMS, emergency call

Ring tone selection/provisioning

Set date time automatically or manually

Dial plan per account

RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Voice Codecs Features

HD voice, HD handset, HD speaker

Codecs: iLBC, G.722, G.711(A/μ), Opus

GSM_FR, G.723, G.729AB, G.726-32

DTMF: In-band, RFC 2833, SIP INFO

Full-duplex hands-free speakerphone with AEC

VAD, AGC, CNG, AEC, PLC, AJB

Directory

Local phonebook up to 1000 entries

XML/LDAP remote phonebook

Intelligent search method

Phonebook search/import/export

Call history: dialed/received/missed/forwarded

Black list

IP-PBX Features

Busy Lamp Field (BLF), bridged Line Appearance(BLA)

Anonymous call, anonymous call rejection

Message Waiting Indicator (MWI) , voice mail

Call park, call pickup

Intercom, paging

Music on hold

Hot-desking

Display and Indicator

3.5" 480 x 320-pixel color display with backlight

16 bit depth color

LED for call and message waiting indication

Dual-color (red or green) illuminated

LEDs for line status information

Wallpaper, national language selection

Intuitive user interface with icons and soft keys

Caller ID with name, number and photo

Feature keys

8 line keys with LED

Paperless DSS keys up to 28 various features

8 feature keys: voice mail, headset, mute,speaker, conference, hold, transfer,redial

4 context-sensitive “soft” keys

6 navigation keys , volume control keys

Illuminated speaker key/headset key/mute key

Interface

Dual-port Gigabit Ethernet

Power over Ethernet (IEEE 802.3af), class 3

1xRJ9 (4P4C) handset port

1xRJ9 (4P4C) headset port

1xRJ12 EXT port supports up to 6 Expansion Modules

Physical Features

Stand with 2 adjustable angles(48°, 55°)

Wall mountable

AC adapter : 100~240V input and DC 5V/1.2A output

Power consumption (PSU): 2.0~4.6W

Power consumption (PoE): 2.5~5.5W

Operating humidity: 10~95%

Operating temperature: -10~50°C

Management

Configuration: browser/LCD-Menu/auto-provision

Auto provision via HTTP/HTTPS FTP/TFTP

Auto-provision with PnP

Reset to factory, restart, reboot

Local tracing log export, system log

Phone lock for personal privacy protection

WiFi/Bluetooth

Network Standard: IEEE802.11b/g/n

Transmission Rate: 150 Mbps

Frequency Range: 2.4GHz

Bluetooth specification: V4.0+HSsystem

Enhanced Data Rata (edr) compliant for both 2Mbps and 3Mbps supported

Bluetooth frequency range: 2.402GHz-2.480GHz

Compatible with Bluetooth specification V4.0 ，back compatible with Bluetooth1.1 1.2 2.0and3.0 for wide-ranging use

Network and Security

SIP v1 (RFC2543), v2 (RFC3261)

SIP server/proxy redundancy

NAT Traversal: STUN mode

DHCP/static/PPPoE/IEEE802.1X/open VPN

HTTP/HTTPS web server

Time and date synchronization by SNTP

DNS-NAPTR/DNS-SRV(RFC 3263)

QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP

TLS(Transport Layer Security), SRTP

HTTPS certificate manager

AES encryption for configuration file

Digest authentication using MD5/MD5-sess

IPv6 supported

Packing

Qty/CTN: 10 PCS

Phone Size:224MM(L)*220MM(W)

N.W/CTN: 14.16 KG

Phonebox Size:245MM(L)*225MM(W)*100MM(H)

G.W/CTN: 15.16 KG

Carton Meas: 525MM(L)*510MM(W)*245MM(H)
