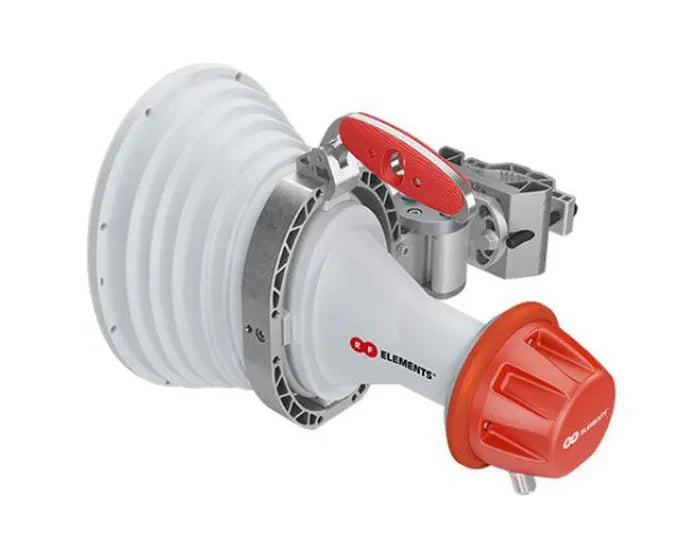

RF Elements 5GHz 20.5dBi 30 degree Asymmetrical Beam Antenna

RF Elements 5GHz 20.5dBi 30 degree Asymmetrical Beam Antenna

For a custom quote please email sales@ziestech.com

Asymmetrical Horn CC Antennas provide unique asymmetrical beam shape while maintaining excellent noise rejection and overall excellent performance of a well designed horn antenna with N-female connectors. Enabling new levels of network scalability and throughput increase. Asymmetrical Horn CC antennas complement the successful Symmetrical Horn Antennas.

TECHNICAL
Radio Connection 2x N Female Bulkhead Connector
Antenna Type Horn
Materials UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Enviromental IP55
Pole Mounting Diameter 40-80 mm (recommend as close to 80 mm as possible)
Temperature -35°C to +60°C (-31°F to +140°F)
Wind Survival 160 km/hour
Wind Loading 67 N at 160 km/hour
Mechanical Adjustment ± 20° Elevation, ± 20° Azimuth
Weight 4.5 kg / 10.0 lbs – single unit* 6.6 kg / 14.6 lbs – single unit incl. package*
Single Unit Retail Box: 435 × 360 × 250 mm / 17.1 × 14.2 × 9.8 inch*
PERFORMANCE
Frequency Range 5180 - 6000 MHz
Gain 20.5 dBi
Azimuth Beam Width -3 dB H 21° / V 21°
Elevation Beam Width -3 dB H 15° / V 15°
Azimuth Beam Width -6 dB H 30° / V 30°
Elevation Beam Width -6 dB H 20° / V 20°
Beam Efficiency 95 %
Front-to-Back Ratio 35 dB
VSWR Max 5180-6000 MHz 1.8
Polarization Dual Linear H + V
Impedance 50 Ohm
