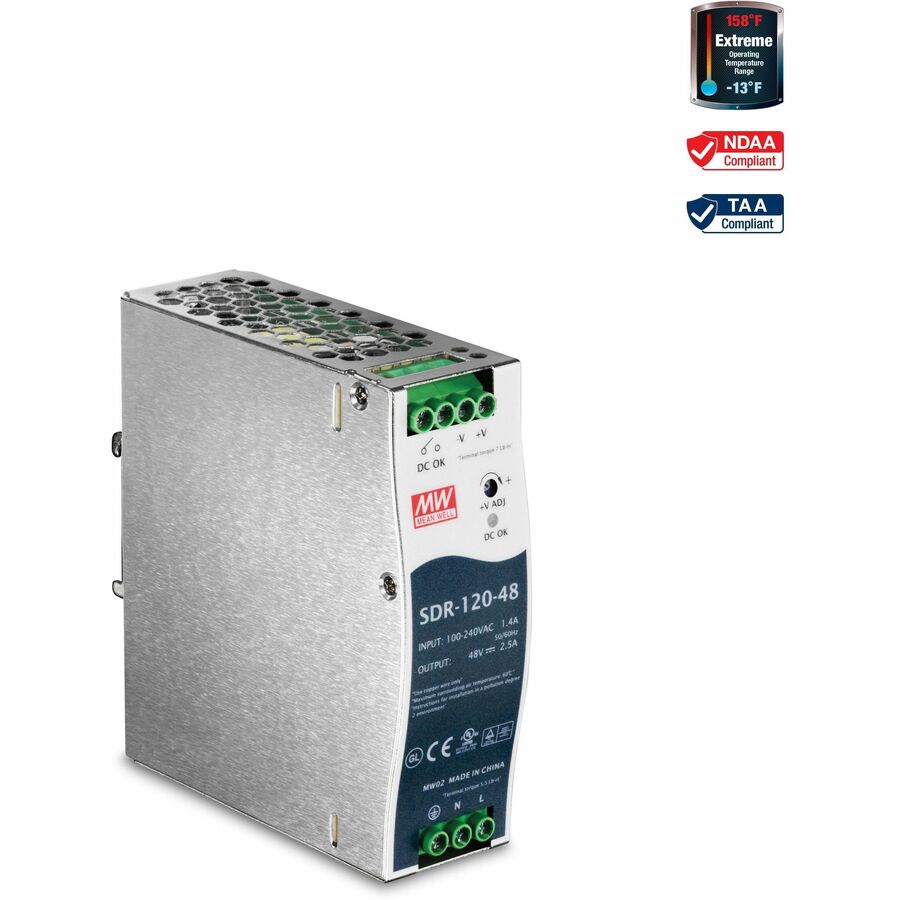

TRENDnet 120 W Single Output Industrial DIN-Rail Power Supply, Extreme -25 to 70 °C (-13 to 158 °F) Operating Temp, Power Supply 120W, DIN-Rail Mount, Overload Protection, Silver, TI-S12048 TI-S12048
Industrial power supply with integrated DIN-rail mount
Provides up to 120 Watts of power (48 V, 2.5 A)
Built-in active PFC (PF > 0.93)
Short circuit/overload/over voltage/over temperature protection
High efficiency (91%) design
UL 508 approved
100 % full load burn-in test
Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
NDAA / TAA compliant

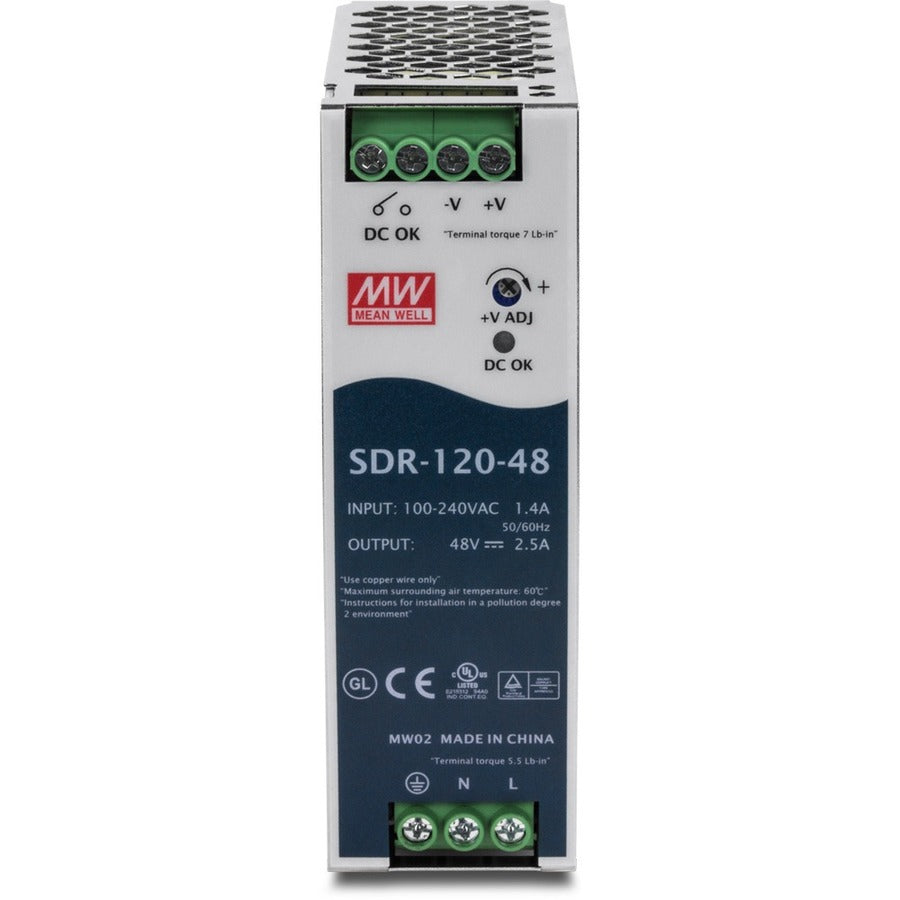

TRENDnet's high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.
120 Watt Power
Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
Active PFC
The built-in active Power Factor Controller (PFC, PF>0.93) helps eliminate unusable reactive power
Overload Protection
Overload/short circuit/over voltage/over temperature protection
Full Load Test
This power supply undergoes a 100 % full load burn-in test
Passive Cooling
Cooling by free air convection

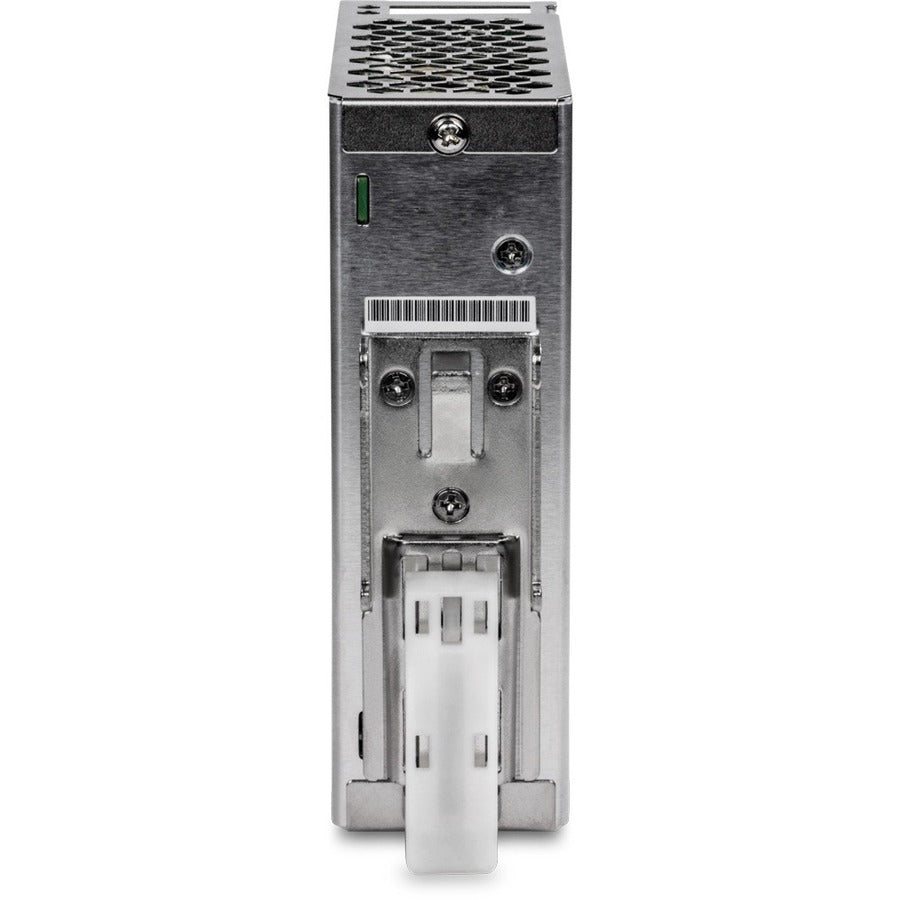

DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
Safety Certifications
Certified for UL 508 and TUV EN60950-1
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
