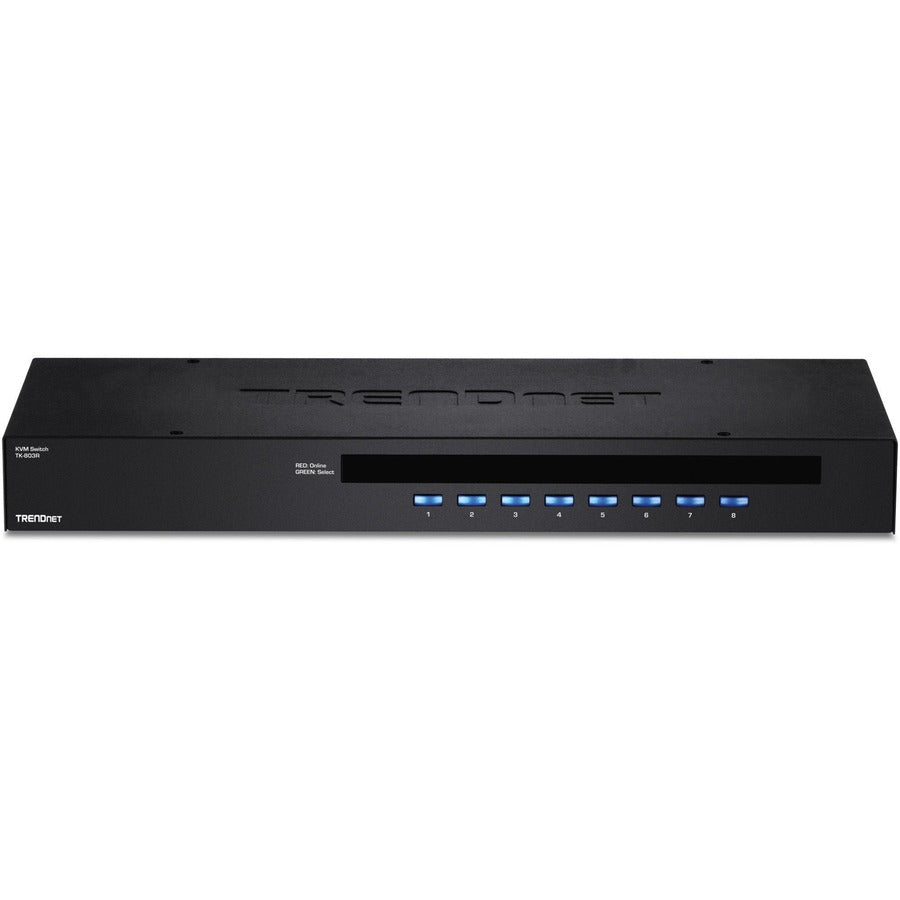

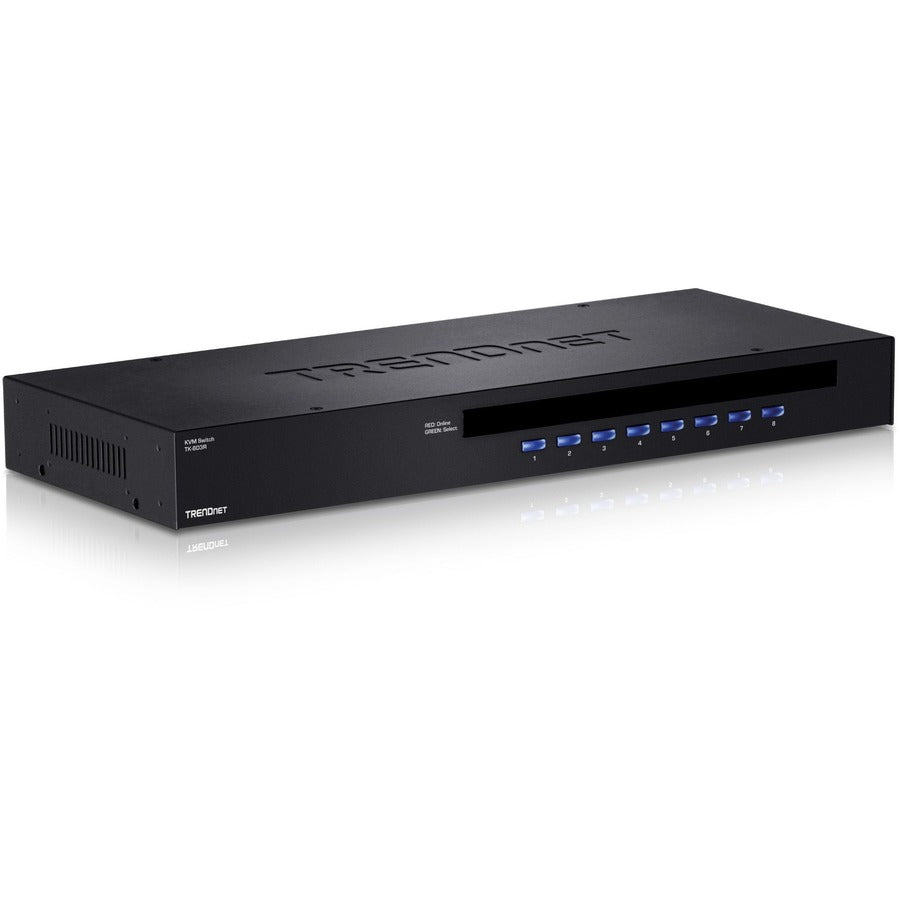

TRENDnet 8-Port USB/PS2 Rack Mount KVM Switch, TK-803R, VGA & USB Connection, Supports USB & PS/2 Connections, Device Monitoring, Auto Scan, Audible Feedback, Control up to 8 Computers/Servers TK-803R

TRENDnet 8-Port USB/PS2 Rack Mount KVM Switch, TK-803R, VGA & USB Connection, Supports USB & PS/2 Connections, Device Monitoring, Auto Scan, Audible Feedback, Control up to 8 Computers/Servers TK-803R

Low stock: 2 left

For a custom quote please email sales@ziestech.com

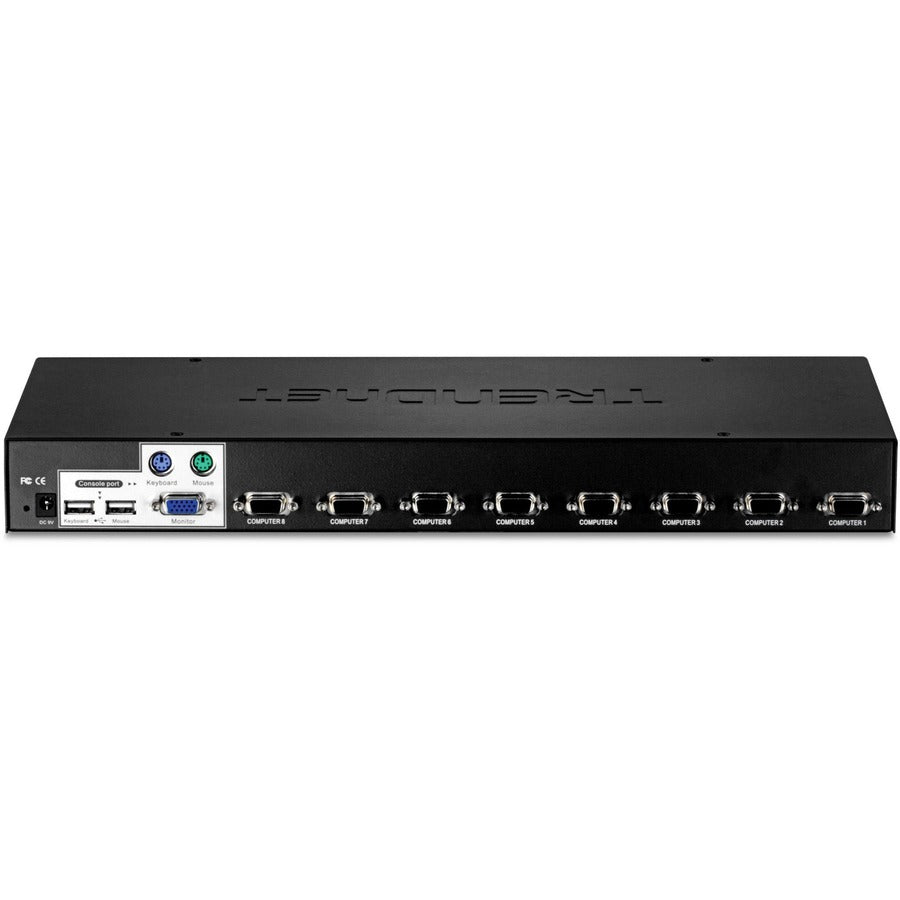

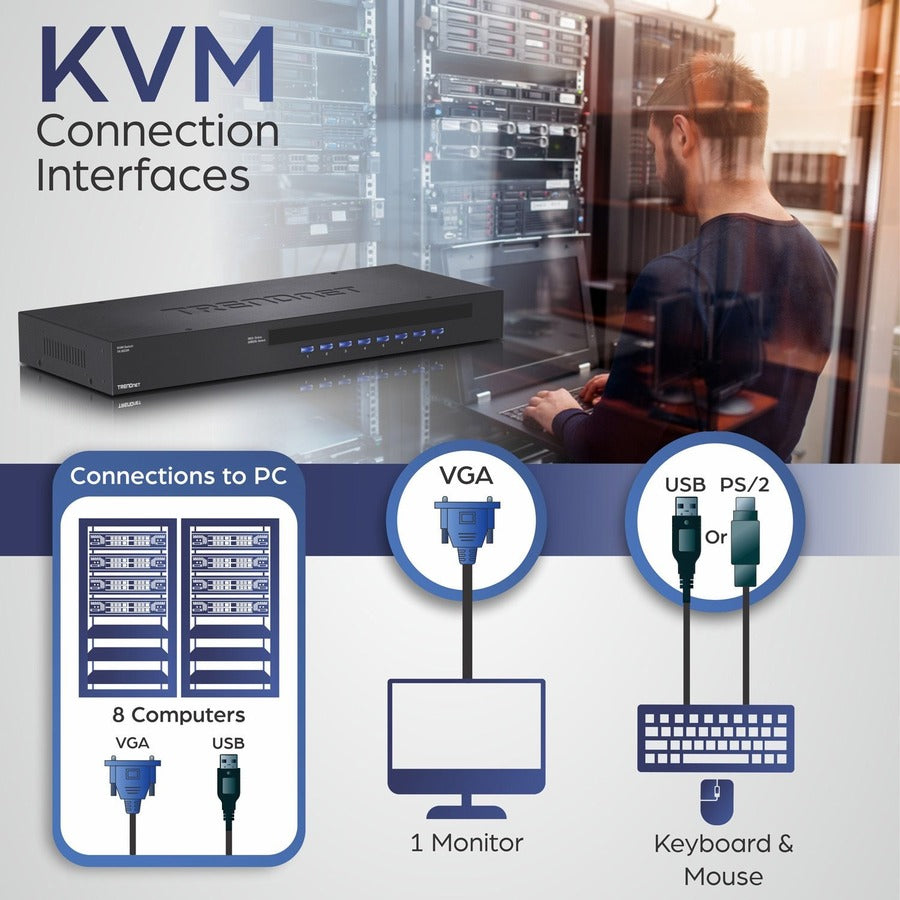

  • PC & CONSOLE PORT INTERFACE: PC: 8 x VGA HDB 15-pin (female); Console: To KVM: 1 x VGA HDB 15-pin (male), To Computer: 1 x VGA HDB 15-pin (male), 1 x USB (Type A)
  • MANAGE MULTIPLE PC'S: This 8-Port KVM Switch enables you to control and manage up to 8 computers or servers with just one set made up of a keyboard, monitor and mouse.
  • SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
  • VIDEO QUALITY: The 8 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
  • CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
  • USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
  • FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
  • RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design

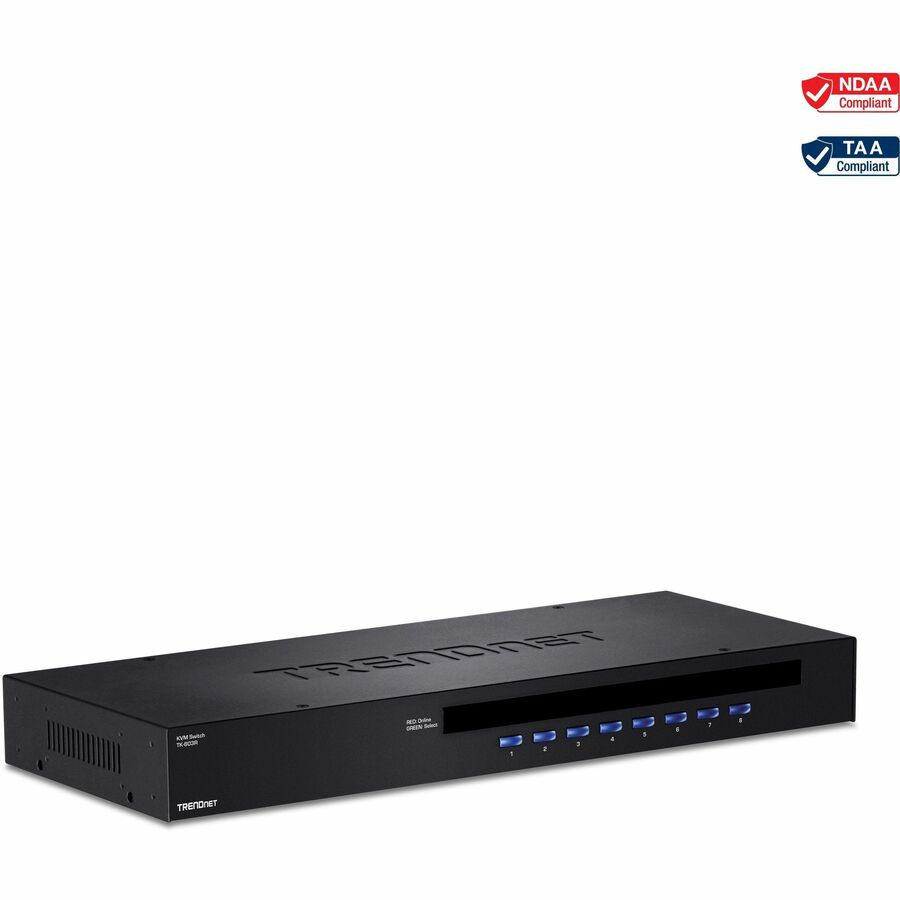

  • NDAA / TAA compliant (U.S. and Canada only)

The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.

-Controls up to 8 computers or servers.
-Supports both USB and PS/2 Interface for console port
-Supports Windows®, Linux®, Mac OS® and more
-High video quality, up to 2048 x 1536 VGA resolution
-Firmware upgradeable via PC port
-Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
-Keyboard status restored when switching between computers
-LEDs display for easy status monitoring
-Beeping sound for port switching confirmation (enable/disable)
-Keyboard hot key command or push button switching
-Plug & Play and Hot-Pluggable
-Standard 19" (1U) rack mount design
-2-Year TRENDnet Manufacturer's Warranty

Package Contents:
- TK-803R
- Quick Installation Guide
- Power Adapter (9 V DC, 1 A)
-Rack mount kit

  • NDAA / TAA compliant (U.S. and Canada only)
  • More from the Manufacturer

    • NDAA / TAA compliant (U.S. and Canada only)
    • RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design
    • FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
    • USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
    • CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
    • SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
    • VIDEO QUALITY: The 8 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
    • MANAGE MULTIPLE PC'S: This 8-Port KVM Switch enables you to control and manage up to 8 computers or servers with just one set made up of a keyboard, monitor and mouse.
    • PC & CONSOLE PORT INTERFACE: PC: 8 x VGA HDB 15-pin (female); Console: To KVM: 1 x VGA HDB 15-pin (male), To Computer: 1 x VGA HDB 15-pin (male), 1 x USB (Type A)
