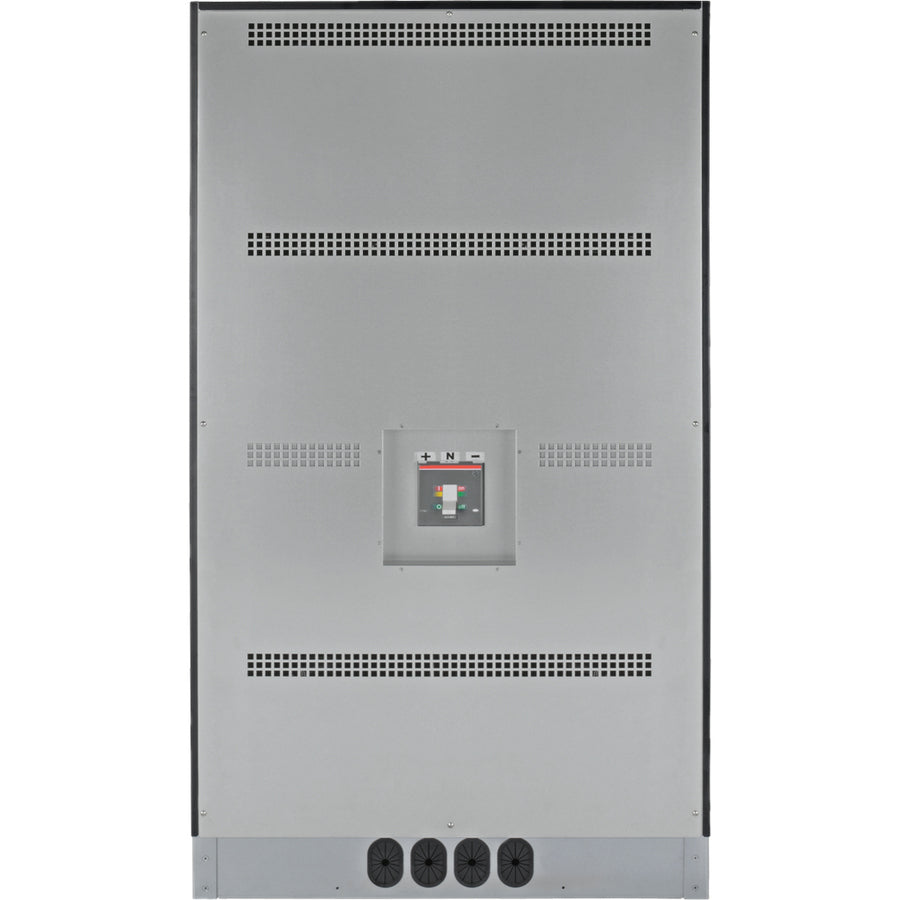

Tripp Lite by Eaton BP480V100 External Battery Pack BP480V100

Tripp Lite's BP480V100 External Battery Pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Includes internal disconnect for battery isolation.

Compatible UPS Systems: S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX and S3M200KX.

Features

+/-240VDC Backup Battery Pack Gives Your Compatible UPS System Extended Runtime

The BP480V100 is compatible only with Tripp Lite's 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack consists of a steel battery cabinet and 40 sealed 100Ah lead acid batteries. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.

Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation

Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V100s connected in parallel.

One-Year Warranty

The BP480V100 is backed by a one-year warranty, ensuring reliability and performance.

• 1-year limited warranty
• Multiple battery pack cabinets may be connected in parallel to increase runtime
• Requires hardwire installation; circuit breakers provide overcurrent protection
• Black steel cabinet matches UPS systems to give your server room a consistent look
• Extends runtime of compatible UPS systems using special +/-240VDC configuration
