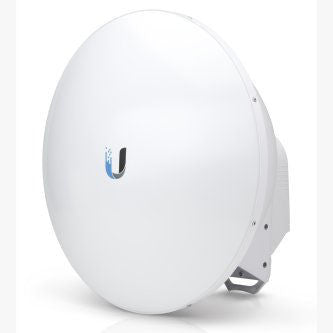

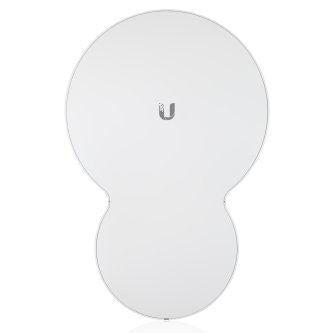

Ubiquiti AirFiber 24GHz AF-24(US)

Ubiquiti AirFiber 24GHz AF-24(US)

Low stock: 17 left

For a custom quote please email sales@ziestech.com

AF-24 delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.

Revolutionary Wireless Technology.
Introducing airFiber, a truly revolutionary 24 GHz Point-to-Point radio from Ubiquiti. Housed in a compact, highly efficient form factor, airFiber delivers revolutionary performance of 1.4+ Gbps, aggregate throughput and 13+ km in range. airFiber ushers in a new era in price disruptive, carrier-class backhaul technology. Supports 24 GHz frequencies.

Features:

      • Supports 24 GHz frequencies
      • 13+ km transmission range
      • Powered with the included 50V, 1.2A PoE Gigabit Ethernet adapter
      • (1) 10/100 Ethernet port (configuration and auxiliary)
      • (1) 10/100/1000 Ethernet port
      • 1.5+ Gbps aggregate throughput
      • 50W maximum power consumption
      • (8) status LEDs that denote port speed, activity, RF status, and GPS synchronization
      • Included pole mounting kit


Note. Price shown is for a single unit. airFiber is normally purchased in pairs to form a single link.



Mechanical
Dimensions 649 x 426 x 303 mm (25.55 x 16.77 x 11.93")
Weight 10.5 kg (Mount Included)
Mounting Pole Mount Kit (Included)i
Wind Loading 480 N at 200 km/hr (108 lbf at 125 mph)
Wind Survivability 200 km/hr (125 mph)
Hardware
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive PoE
Max. Power Consumption < 50W
Operating Temperature -40 to 55° C (-40 to 131° F)
Certifications CE, FCC, IC
Software
Operating Frequency 24.05 – 24.25 GHz*
*Two 100 MHz channels are available: 24.1 GHz (24.05-24.15 GHz) and 24.2 GHz (24.15-24.25 GHz)
Maximum Throughput 1.5+ Gbps
Maximum Range 13+ km
Packets per Second > 1 Million
Encryption 128-Bit AES
Uplink/Downlink Ratio 50% Fixed
Latency
Full Duplex Mode
Half Duplex Mode

< 200 µs at Full Throughput
< 2 ms at Full Throughput
MTU (Maximum Transmission Unit) Up to 9600
